Self Piercing Saddle Valve Clamp Fitting DIY - Water Filter Men

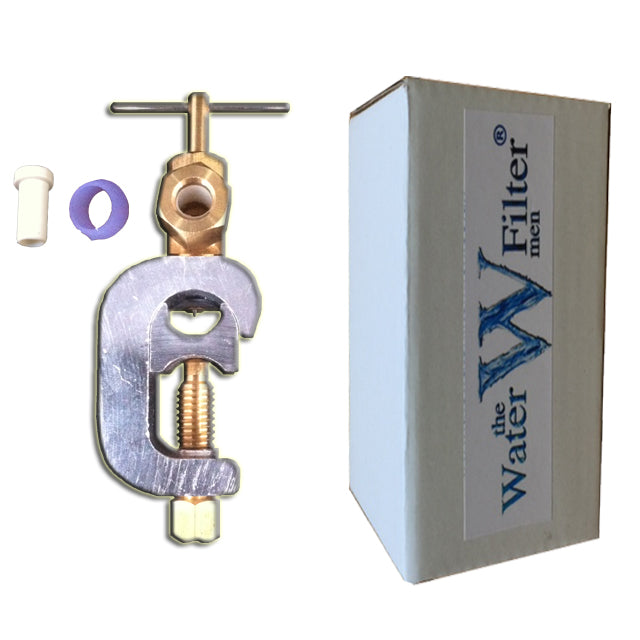

    Self Piercing Saddle Valve Clamp Fitting DIY

    €13,99 €16,99
    Tax included. Shipping calculated at checkout.

    USAGE:
    On all copper cold water pipe to get water feed connection to any water filter
    Connect cold water feed undersink/fridge freezer / any other cold water feed to 1/4" ldpe pipe
    Used to connect to multiple different water filters including reverse osmosis systems, connection to undersink drinking water filters and fridge filters with 1/4" ldpe pipe.


    DESCRIPTION:
    Self Piercing Needle Clamp Saddle Valve


    SPECIFICATION:
    Will fit 9mm to 15mm copper comes with all parts like 1/4" pipe insert and Olive ready for immediate install.

    SELF PIERCING SADDLE VALVE INSTRUCTIONS

    1. CLAMP THE SADDLE VALVE TO YOUR COLD WATER SUPPLY PIPE (15mm/9mm) .

    2. PLACE ¼” NUT ON TUBING , PLACE PIPE INSERT INTO TUBING , THEN PLACE ¼” OLIVE ON TUBING(CAN BE TIGHT).

    3. FIRMLY PUSH ¼” PIPING INTO HOLE ON SADDLE VALVE

    4. TIGHTEN NUT OVER TO COMPRESS FITTING.

    5. TURN SELF PIERCING VALVE LEVER CLOCKWISE TO PIERCE HOLE THEN TURN ANTI-CLOCKWISE TO ALLOW THE WATER TO FLOW.
