Réduire le nombre de raccords droits Montage rapide par pression

USAGE:
Reverse Osmosis Systems , All water systems or fridge freezers where 1/4" or 3/8" ldpe tubing is used (or Water Pipe Tubing OD 6mm / 8mm / 10mm )


DESCRIPTION:
Connects 2 lengths of 1/4" to 3/8" ldpe pipe tubing together which is connecting 6mm water pipe tubing to 10mm water pipe tubing (all outer diameter measurements of the water pipe)
or

Connects 8mm OD Water Pipe to 6mm OD Water Pipe.

Remove Blue locking clips with your nail on both sides. Insert your tubing firmly but carefully
into each side until you feel the tubing tightly fitted. Reinsert locking clips to complete installation.


SPECIFICATION: (OD = Outer Diameter Measurement of the Water Pipe Tubing

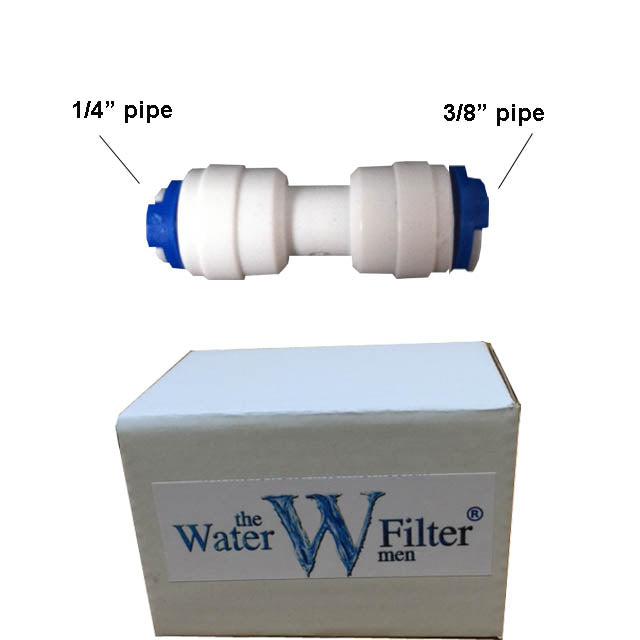

3/8" Water Pipe (10mm OD) Pushfit X 1/4" Water Pipe (6mm OD) Pushfit

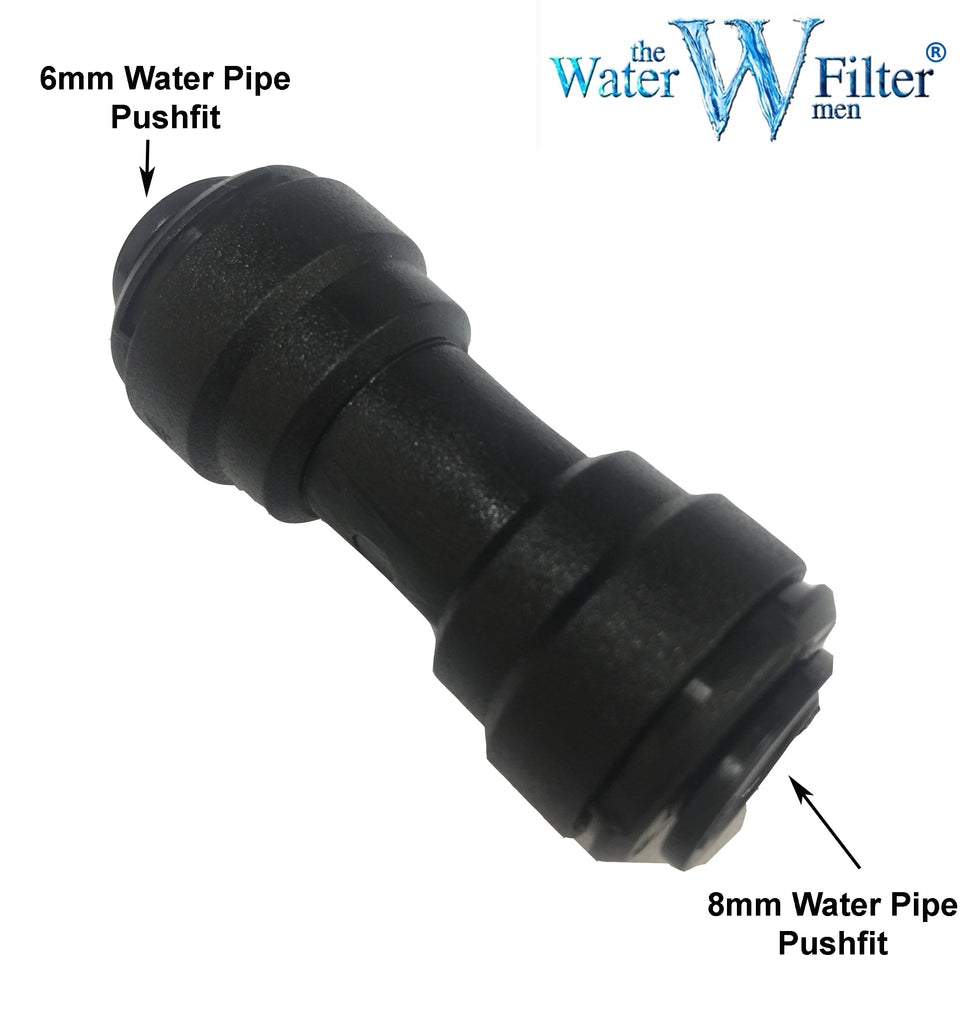

1/4" Water Pipe (6mm OD) Pushfit X 8mm OD Water Pipe Pushfit
